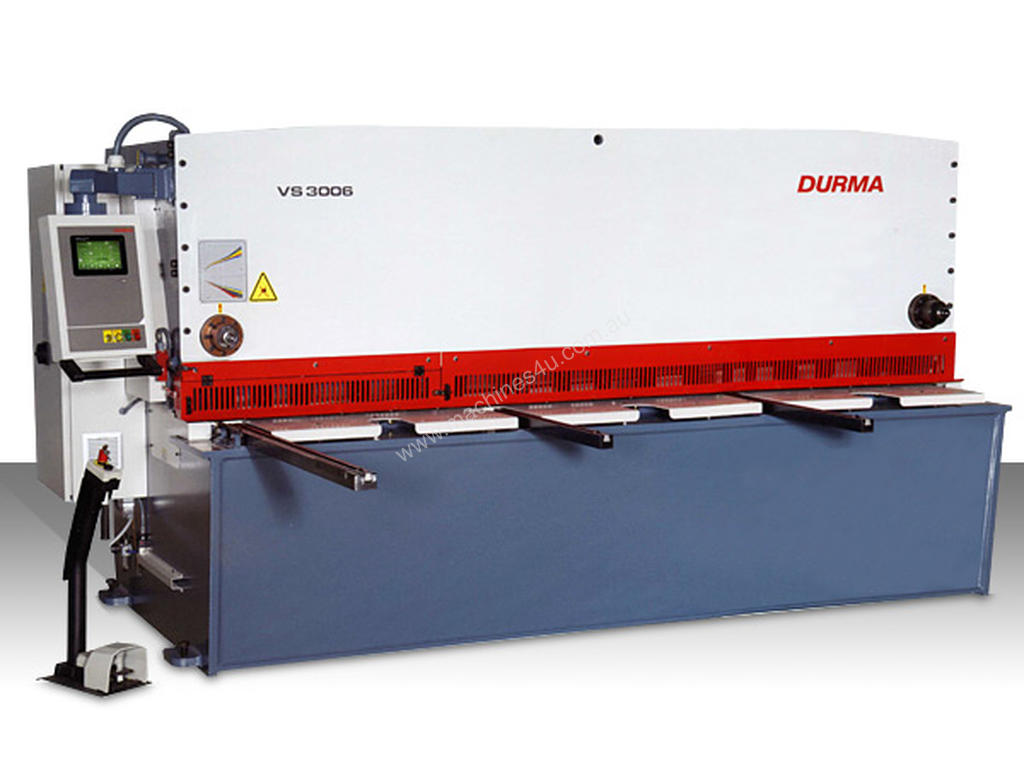

VS Series Variable Rake Angle Hydraulic Guillotine

VS Series CNC Guillotines provide versatility along with the technology and construction for shearing thin narrow strips or the precision processing of large plates. The upper beam which carries the upper blade is guided by adjustable preloaded and hardened guide ways, a system normally found in much more expensive machines. Both the rake angle and the blade clearance are adjusted hydraulically reducing maintenance and providing overload protection.

The rake angle can be reduced as low as 30° reducing distortion in the sheared blank. This can be especially beneficial in the shearing of narrow strips.

Standard Features

*Heavy duty St 44 AI steel construction & Stress relieved frame

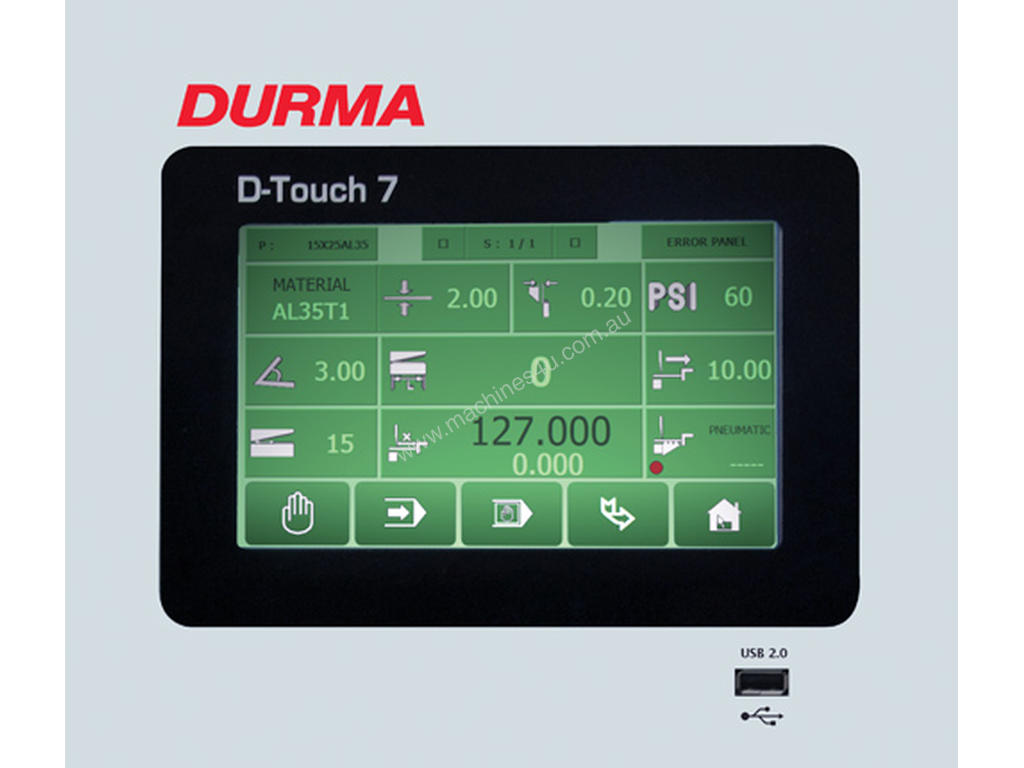

*Userfriendly CNC Touchscreen control unit - D-Touch 7
*Automatically adjusted rake angle by CNC
*Automatically adjusted blade gap by CNC
*Automatically adjusted cutting length by CNC
*Ball integrated front tables
*Ballscrew back gauge, 1000 mm
*1 mt flip-up finger guards
*Squaring arm with scale & T-Slot & Tilting stop ( L= 1500 mm )
*Support arms T-Slot & Tilting stop ( L=1000 mm )
*Illumination & Shadow line
*Throat depth with 350 mm

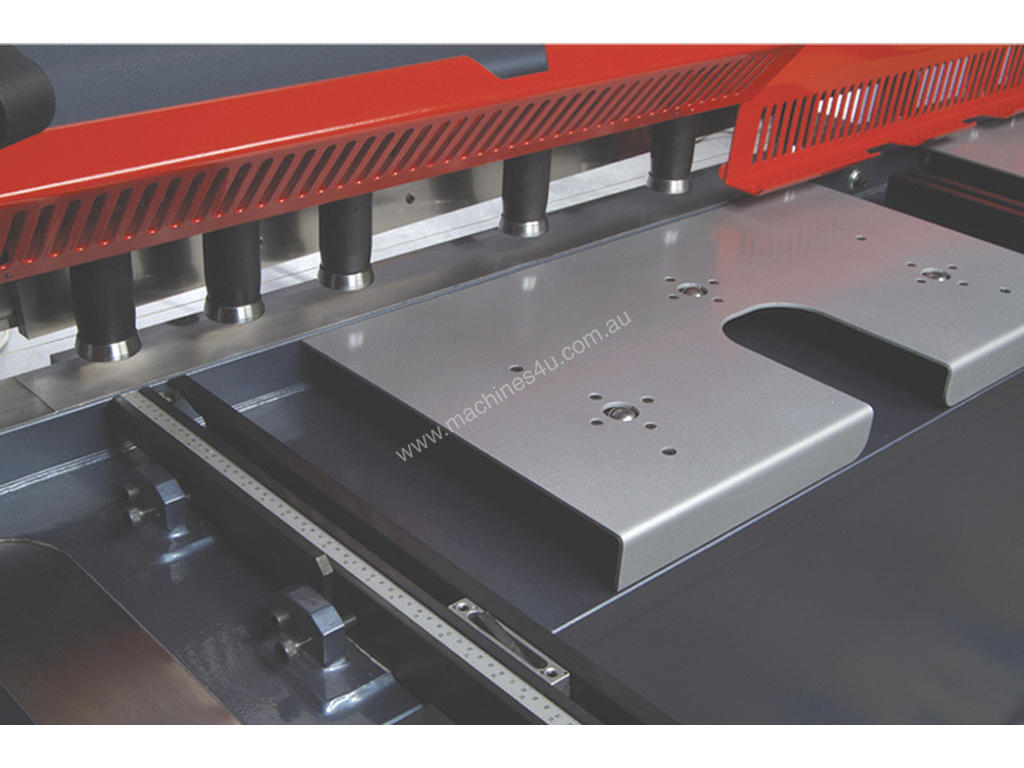

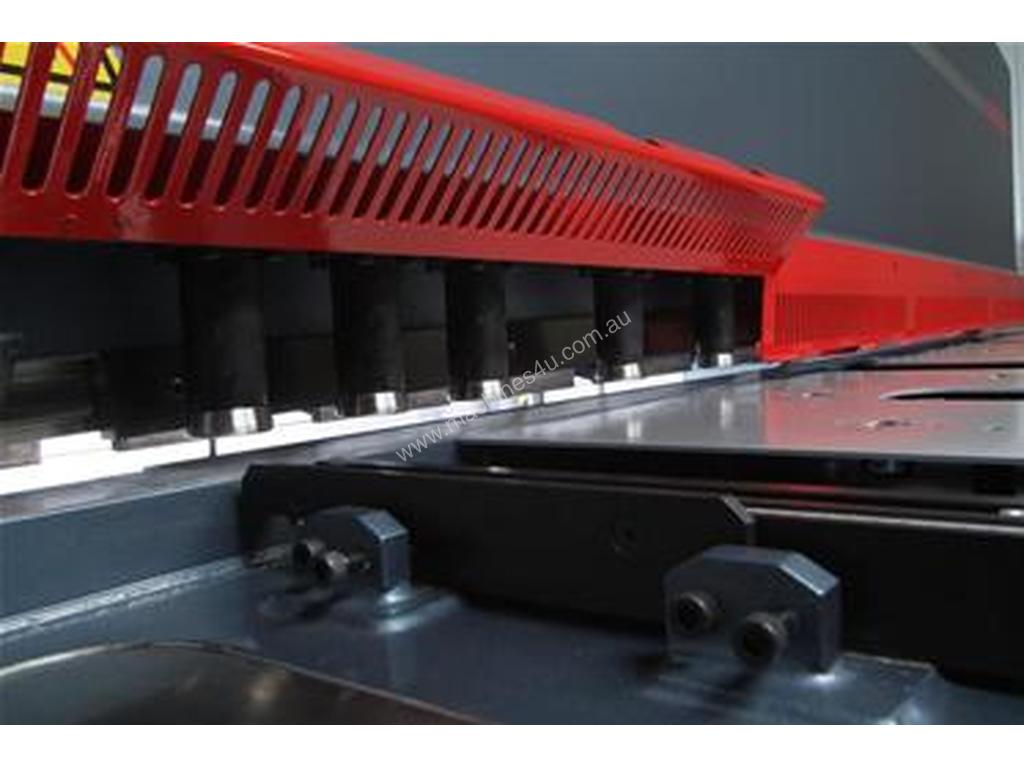

*Automatically pressure adjusted solid holddowns
*Top and Bottom blades with 4 sides
*Foot pedal
*High performance hydraulics & electronics components

Optional Features

*DNC 61 or DAC 350 Control Unit
*HI SPEED ( Stroke/Minute)
*Laser Cutting Line
*Light Curtains for Finger Protection
*"Pneumatic sheet support device ""standart"" -Durma I"
*"Pneumatic sheet support device ""two steps"" - Durma II"
*"Pneumatic sheet support device with ""Return to sender""- Durma III"
*Sheet Support device with conveyor belt and scrap container
*Stacker + Al?gment Cylinder
*CNC Front Feeding System
*Hydraulic anti-twist device
*Special Throat Depth
*Backgauge 1250 mm
*X1, X2 Axis
*Hydraulic swing-up back gauge
*Adjustable holddown pressure
*Oil Coolant
*Central lubr?cation manual
*Central lubr?cation motorised
*Adjustable Angle stop 0-180°
*add. Support Arms
*Special blades
*Special color
*Control Panel on opposite position
*Temperature measurement
